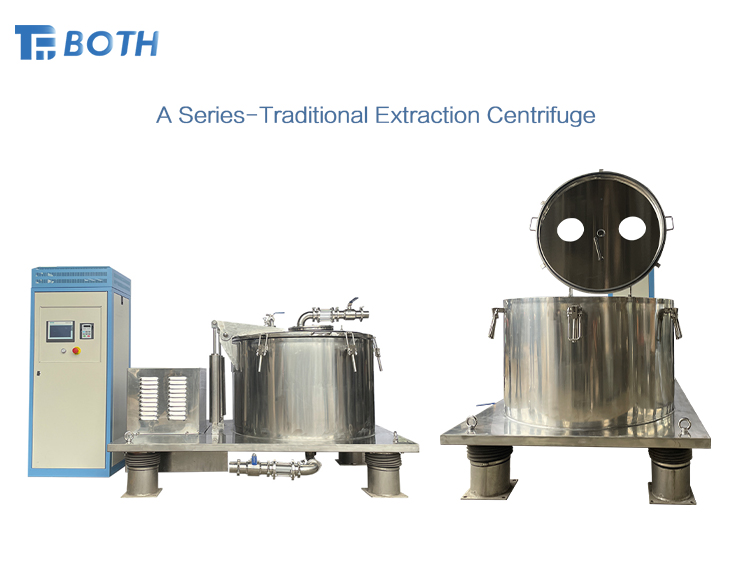

CFE-A Series Industrial Separator Hemp Oil Ethanol Extraction Centrifuge Extractor Machine
1. Solid structure,reliable,economical and practical
2. Easy operation,long service life
3. The base is equipped with a shock absorber,which can maintain the stability of the equipment at high speed
4. Internal and external surfaces are with 400 grits polishing,meet GMP production tandards (external surface matte treatment is optional)
5. The whole process is visual operation,the inlet and outlet are equipped with sight glass tube,and the cover is installed with large-size sight glass windows
GMP Production Standard
●400#grits Bright Polished internal and external surface
Foundation Supports with Shock Absorber
●Outstanding stability at high Rotation speed 950~1900 RPM
●Reserved Bolted opening
Explosion-Proof Motor
●Fully closed motor box
●Avoid infiltration of solvent
●EX DlBT4 standard
●UL Or ATEX for option
Process Visualization
●0150X15mm Thick large diametertempered high borosilicate glassexplosion-proof Process View Window
●Inlet and outlet pipeline with large diameter tempered quartz Flow Sight
PLc Intelligent Process Control
●Except for explosion-proof motor,all live control components are integrated
●Reliable safety
●Full explosion-proof control cabinet is for option.
| Model | CFE-350A | CFE-450A | CFE-600A | CFE-800A | CFE-1000A | CFE-1200A | |||||||||||||||||||||
| Rotation Drum Diameter (mm”) | 350mm/14" | 450mm/18" | 600mm/24" | 800mm/31" | 1000mm/39" | 1200mm/47" | |||||||||||||||||||||
| Rotation Drum Height(mm) | 220mm | 350mm | 400mm | 500mm | |||||||||||||||||||||||
| Rotation Drum Volume(L/Gal) | 10L2.64Gal | 20L/5.28Gal | 45L/11.89Gal | 100L/26.42Gal | 140L/36.98Gal | 320L/84.54Gal | |||||||||||||||||||||
| Soaking Vessel Volume(L/Gal) | 20L/5.28Gal | 35L/9.25Gal | 60L/15.85Gal | 140L/36.98Gal | 220L/58.12Gal | 380L/100.39Gal | |||||||||||||||||||||
| Biomass per Batch (Kg/Lbs.) | 15Kg/33Lbs. | 25Kg/55Lbs. | 50Kg/110Lbs. | 135Kg/298Lbs. | 200Kg/441Lbs. | 300Kg/661Lbs.. | |||||||||||||||||||||
| Temperature(℃) | -80℃~RT | ||||||||||||||||||||||||||
| Max Speed(RPM) | 2500RPM | 1900RPM | 1500RPM | 1200RPM | 1000RPM | 800RPM | |||||||||||||||||||||
| Motor Power (KW) | 1.5KW | 3KW | 5.5KW | 7.5KW | 11KW | ||||||||||||||||||||||
| Weight (Kg) | 200Kg | 250Kg | 800Kg | 1300Kg | 2000Kg | 2500Kg | |||||||||||||||||||||
| Centrifuge Dimension(cm) | 100*58*67cm | 98*65*87cm | 130*88*90cm | 180*120*114cm | 200*150*122cm | 230*165*137cm | |||||||||||||||||||||
| Control Cabine Dimension(cm) | 40*50*20cm | 58*43*128cm | |||||||||||||||||||||||||
| Control | PLC Program Control,Honeywell Frequency Converter,Siemens Touch Screen | ||||||||||||||||||||||||||
| Cerification | GMP Standard,EX DIIBT4,ULor ATEXOptional | ||||||||||||||||||||||||||
| Power Supply | 220V/60 HZ,Single Phase or 440V/60HZ,3 Phase;or Customizable | ||||||||||||||||||||||||||
