CFE-B Series High Speed Separating Centrifugal Machines Stainless Steel Solid Liquid Separator Centrifuge

Product Description:

Industrial-Grade High-Capacity Extraction Platform — Designed for Batch Scale-Up and Production Line Integration
The CFE-B Series represents a comprehensive upgrade over the A Series in terms of structure, load capacity, and rotational speed. It features an integrated concealed base and is equipped with a corrosion-resistant motor cover, aligning with industrial aesthetics and safety standards in North American and European markets.
All SUS304 structural components undergo shot peening treatment to enhance wear resistance and ensure long-term reliability. With its oversized drum and high-speed spin-drying capability, the CFE-B is ideal for high-throughput production environments, supporting up to 1400 kg of material per batch.

Typical Applications: #Industrial-scale CBD production, #deep processing of natural products, #flavor and fragrance industry.


Product Detail

Product Tags

Product Advantage

1. Hidden base design,suitable for European and American national aesthetic standards
2. Enclosed motor cover to avoid solvent corrosion of  electrical components
3. SUS304 stainless steel surface shot blasting treatment,increase wear resistance and hardness,the surface is not easy to scratch
4. Centrifugal dehydration more efficient,higher speed
5. Compared with the A series,the B series centrifuges can carry more  materials and handle more per batch

Product Details

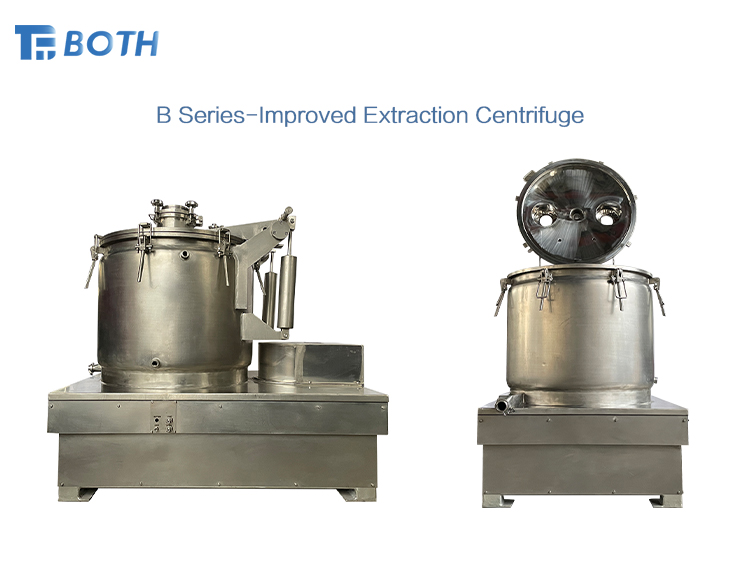

CFE-B Centrifugal extractor
Rotation Drum Diameter Centrifugal

GMP Production Standard

●400#grits Bright Polished internal and external surface

Foundation Supports with Shock Absorber

Foundation Supports with Shock Absorber

●Outstanding stability at high Rotation speed 950~1900 RPM
●Reserved Bolted opening

Explosion-Proof Motor Centrifuge

Explosion-Proof Motor

●Fully closed motor box
●Avoid infiltration of solvent
●EX DlBT4 standard
●UL Or ATEX for option

Process Visualization

Process Visualization

●0150X15mm Thick large diametertempered high borosilicate glassexplosion-proof Process View Window

●Inlet and outlet pipeline with large diameter tempered quartz Flow Sight

PLc Intelligent Process Control

PLc Intelligent Process Control

●Except for explosion-proof motor,all live control components are integrated

●Reliable safety

●Full explosion-proof control cabinet is for option.

Model CFE-500B CFE-600B CFE-800B CFE-1000B CFE-1200B
Rotation Drum Diameter(mm/") 500mm/20" 600mm/24" 800mm/31"   1000mm/39" 1200mm/47"
Rotation Drum Height(mm) 500mm 600mm 630mm
Rotation Drum Volume(L/Gal) 98L/25.89Gal 169U44.65Gal 300L79.25Gal   467L/123.37Gal 712L/188.09Gal
Soaking Vessel Volume(L/Gal) 165L/43.59Gal 210L55.48Gal 420L/110.95Gal   660L/174.35Gal 1000L/264.17Gal
Biomass per Batch (Kg/Lbs.) 600Kg/1323Lbs. 800Kg/1764Lbs. 1000Kg/2205Lbs.   1200Kg/2646Lbs. 1400Kg/3086Lbs.
Temperature(℃) -80℃-RT
Max Speed(RPM) 1600RPM 1500RPM 1200RPM 1000RPM
Motor Power(KW) 3KW 5.5KW 7.5KW 11KW
Weight (Kg) 780Kg 850Kg 1200Kg 2200Kg 3000Kg
Centrifuge Dimension (cm) 126*92*122cm 136*100*148cm 160*110*151cm   180*142*154cm 200*162*160cm
Control Cabine Dimension(cm) 58*43*128cm
Control PLC Program Control,Honeywell Frequency Converter,Siemens Touch Screen
Certification GMP Standard,EXDIIBT4,ULor ATEX Optional
Power Supply 220V/60 HZ,Single Phase or 440V/60HZ,3 Phase;or Customizable
Turnkey solution Centrifuge
