CFE-C1 Series Fully Enclosed Solvent Extraction Centrifuge Extractor

Product Description:

Integrated Structure with Mobile Base — Ideal for Cleanroom and Space-Constrained Environments
The C1 Series features a fully enclosed electrical design, enhancing space efficiency and ease of cleaning. With a lightweight build and brake-equipped casters at the base, the unit offers flexible mobility to adapt to various operational settings. Its compact feed and discharge configuration is well-suited for small-batch, high-frequency operations.
Designed for use in GMP - compliant clean rooms, food production facilities, and functional beverage applications where clean ability and space optimization are critical.

Typical Applications: #Food-grade extraction, #R&D workshops for plant-based beverages, #clean laboratory environments.


Product Detail

Product Tags

Product Advantage

1. Fully enclosed structure to avoid solvent corrosion of electrical components
2. Compact design,more efficient space use
3. Integrated design work table,easy to clean
4. Simple operation,long service life
5.The weight of the whole machine is lighter,and the base is equipped with universal brake casters for movement

Product Details

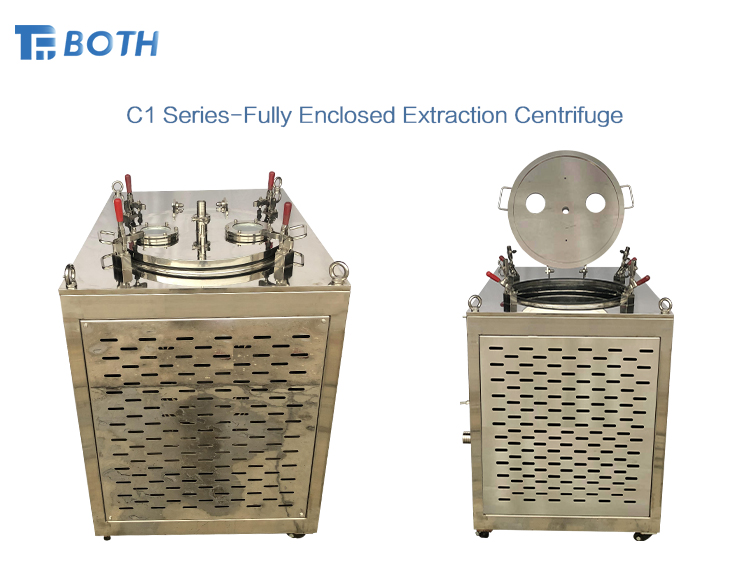

CFE-C1 Centrifugal extractor

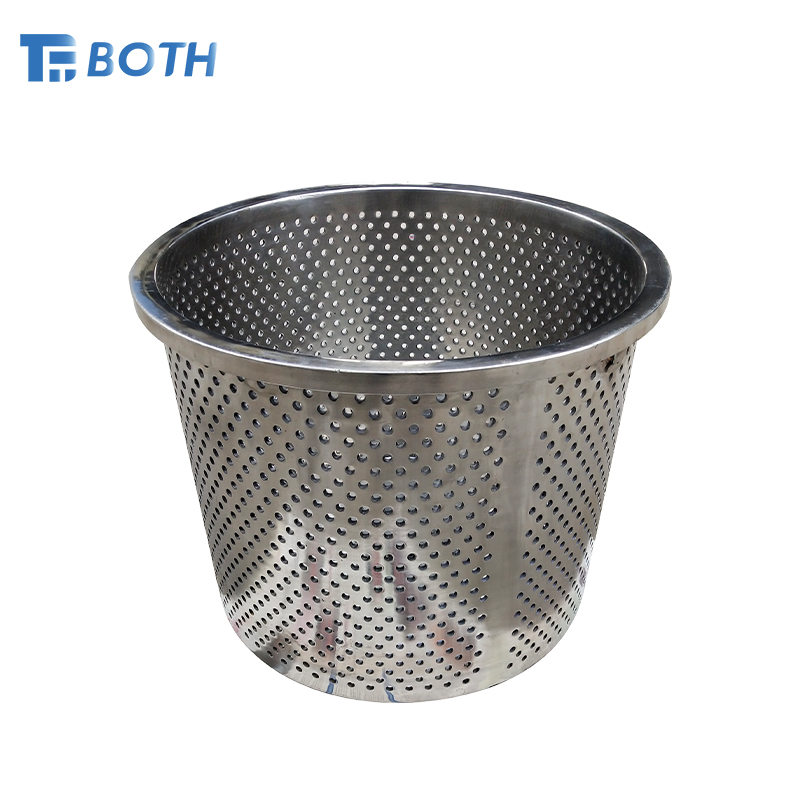

Rotation Drum Diameter Centrifugal

GMP Production Standard

●400#grits Bright Polished internal and external surface

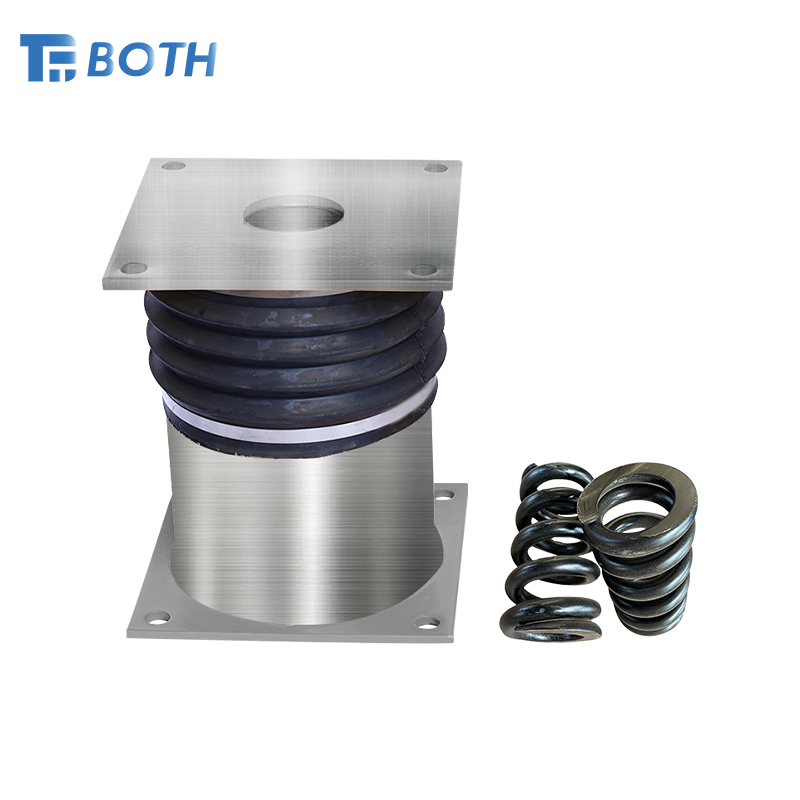

Foundation Supports with Shock Absorber

Foundation Supports with Shock Absorber

●Outstanding stability at high Rotation speed 950~1900 RPM
●Reserved Bolted opening

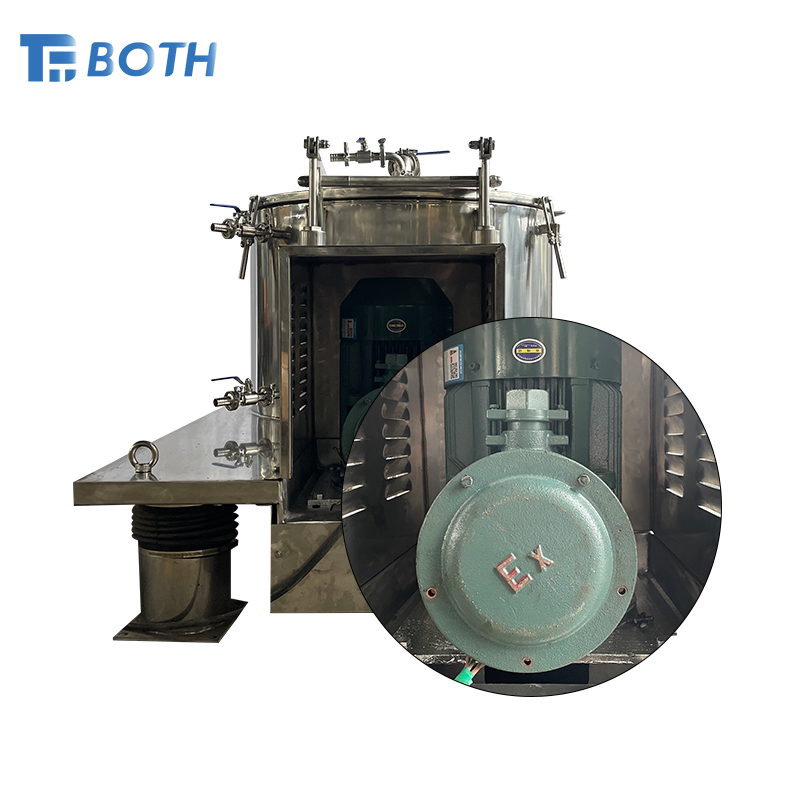

Explosion-Proof Motor Centrifuge

Explosion-Proof Motor

●Fully closed motor box
●Avoid infiltration of solvent
●EX DlBT4 standard
●UL Or ATEX for option

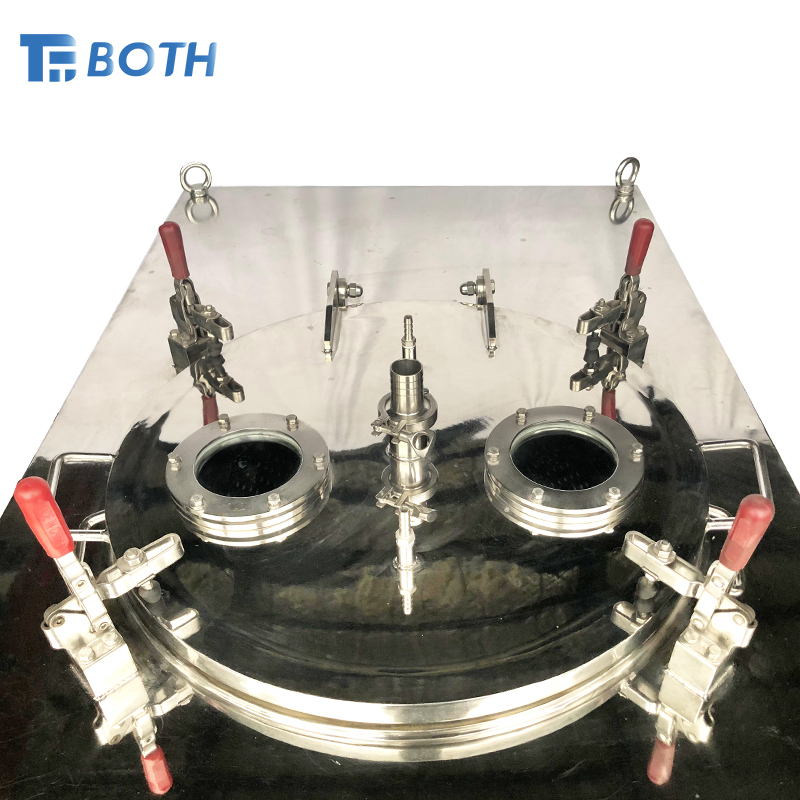

Process Visualization

Process Visualization

●0150X15mm Thick large diametertempered high borosilicate glassexplosion-proof Process View Window

●Inlet and outlet pipeline with large diameter tempered quartz Flow Sight

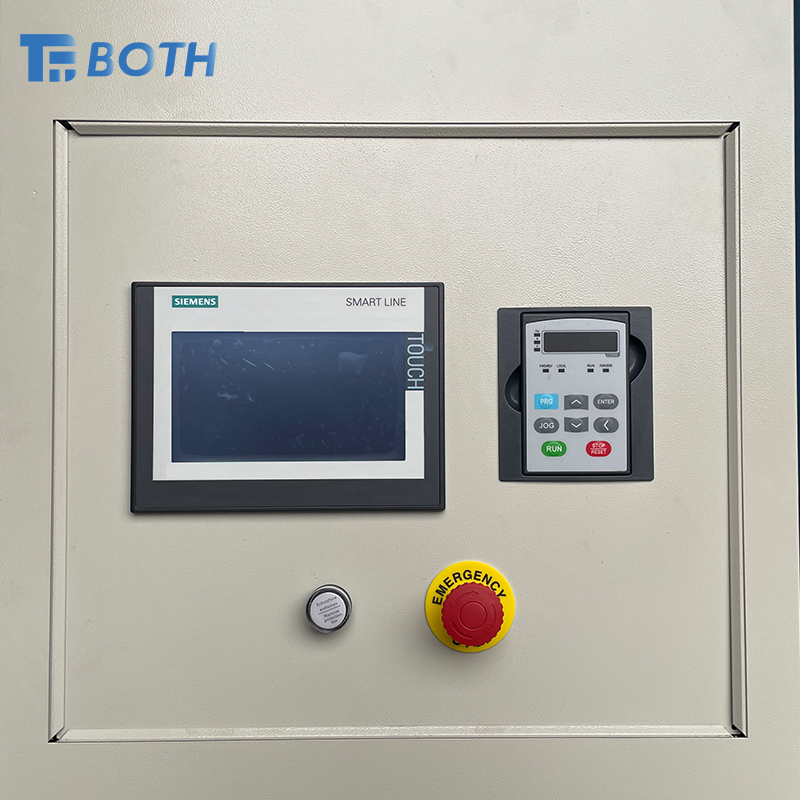

PLc Intelligent Process Control

PLc Intelligent Process Control

●Except for explosion-proof motor,all live control components are integrated

●Reliable safety

●Full explosion-proof control cabinet is for option.

Model CFE-350C1 CFE-450C1 CFE-600C1
Rotation Drum Diameter(mm") 350mm/14” 450mm/18" 600mm/24"
Rotation Drum Height(mm) 220mm 480mm 350mm
Rotation Drum Volume(L/Gal) 10L/2.64Gal 50L13.21Gal 45L/11.89Gal
Soaking Vessel Volume(L/Gal) 20L/5.28Gal 80L/21.13Gal 60U15.85Gal
Biomass per Batch(Kg/Lbs.) 15Kg/33Lbs. 35Kg/77Lbs. 50Kg/110Lbs.
Temperature(℃) -80℃~RT
Max Speed (RPM) 2500RPM 1900RPM 1500RPM
Motor Power (KW) 1.5KW 3KW
Weight(Kg) 350Kg 400Kg 890Kg
Centrifuge Dimension(cm) 105*70*101cm 115*80*111cm 125*90*121cm
Control Cabine Dimension(cm) 98*65*87cm
Control PLC Program Control,Honeywell Frequency Converter,Siemens Touch Screen
Cerification GMP Standard,EX DIIBT4,ULor ATEXOptional
Power Supply 220V/60 HZ,Single Phase or 440V/60HZ,3 Phase;or Customizable

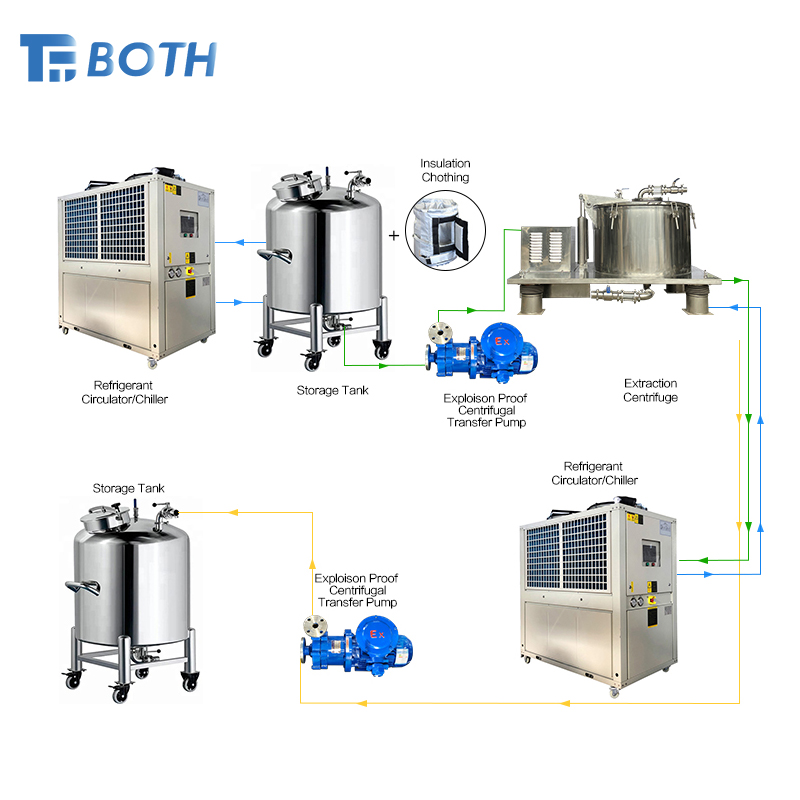

Turnkey solution Centrifuge
