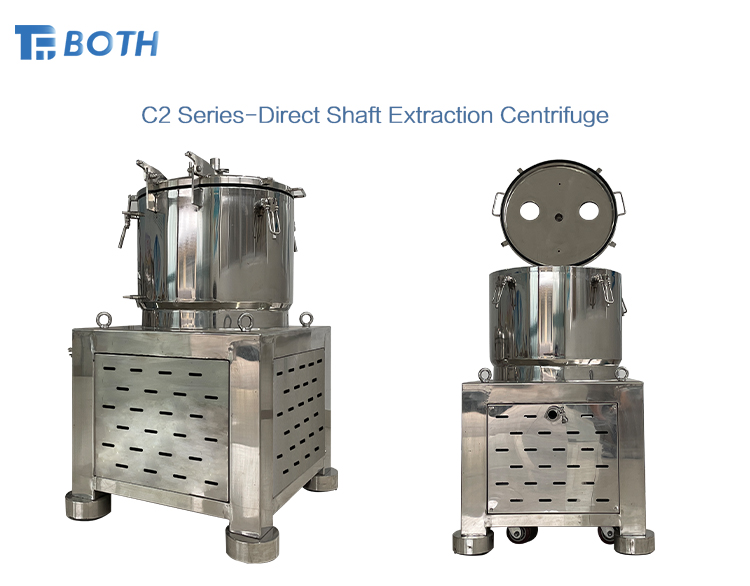

CFE-C2 Series Industrial Direct Shaft Continuous Basket Fine Chemicals/Solvents Extraction Centrifuge
1.The driving mode is changed from belt driving to direct shaft driving
2.The direct shaft driving reduces the energy loss in the momentum transfer process and improves the efficiency ratio
3.Direct shaft driving structure is simple,so as a long time continues working
4.No static electricity generated during the work,perfect explosion-proof performance
5.The weight of the whole machine is lighter,and the base is equipped with universal brake casters for movement
GMP Production Standard
●400#grits Bright Polished internal and external surface
Foundation Supports with Shock Absorber
●Outstanding stability at high Rotation speed 950~1900 RPM
●Reserved Bolted opening
Explosion-Proof Motor
●Fully closed motor box
●Avoid infiltration of solvent
●EX DlBT4 standard
●UL Or ATEX for option
Process Visualization
●0150X15mm Thick large diametertempered high borosilicate glassexplosion-proof Process View Window
●Inlet and outlet pipeline with large diameter tempered quartz Flow Sight
PLc Intelligent Process Control
●Except for explosion-proof motor,all live control components are integrated
●Reliable safety
●Full explosion-proof control cabinet is for option.
| Model | CFE-350C2 | CFE-450C2 | CFE-600C2 | ||||||||||||||||||||||||
| Rotation Drum Diameter(mm/") | 350mm/14" | 450mm/18" | 600mm/24" | ||||||||||||||||||||||||
| Rotation Drum Height(mm) | 220mm | 300mm | 350mm | ||||||||||||||||||||||||
| Rotation Drum Volume(L/Gal) | 10L/2.64Gal | 28L/7.40Gal | 45U11.89Gal | ||||||||||||||||||||||||
| Soaking Vessel Volume(L/Gal) | 20L/5.28Gal | 40V/10.57Gal | 60L/15.85Gal | ||||||||||||||||||||||||
| Biomass per Batch(Kg/Lbs.) | 15Kg/33Lbs. | 30Kg/66Lbs. | 50Kg/110Lbs. | ||||||||||||||||||||||||
| Temperature(℃) | -80℃-RT | ||||||||||||||||||||||||||
| Max Speed(RPM) | 2500RPM | 1900RPM | 1500RPM | ||||||||||||||||||||||||
| Motor Power(KW) | 1.5KW | 3KW | |||||||||||||||||||||||||
| Weight(Kg) | 310Kg | 360Kg | 850Kg | ||||||||||||||||||||||||
| Centrifuge Dimension(cm) | 66*60*110cm | 76*70*120cm | 86*80*130cm | ||||||||||||||||||||||||
| Control Cabine Dimension(cm) | 98*65*87cm | ||||||||||||||||||||||||||
| Control | PLCProgram Control,Honeywell Frequency Converter,Siemens Touch Screen | ||||||||||||||||||||||||||
| Certification | GMP Standard,EXDIIBT4,UL or ATEXOptional | ||||||||||||||||||||||||||
| Power Supply | 220V/60 HZ,Single Phase or 440V/60HZ,3 Phase;or Customizable | ||||||||||||||||||||||||||
