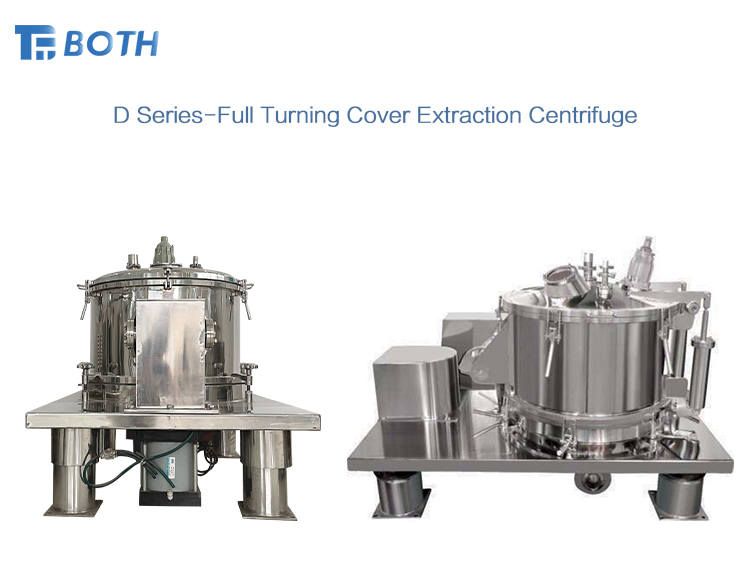

CFE-D Series Full Tuming Cover Filter Extraction Continuous Basket Centrifuge Extractor
1.Full turning design,while retaining the top opening cover for the user,to meet the different needs
2.a variety of full turning methods such as hydraulic,pneumatic or manual for options;
3.It is convenient for user to clean the soaking vessel regularly and comprehensively
4.Especially adapt for food grade products or high cleanliness requirements of the production process
5.The soaking vessel is single-layer shell as standard,and the jacket can be customized production.
GMP Production Standard
●400#grits Bright Polished internal and external surface
Foundation Supports with Shock Absorber
●Outstanding stability at high Rotation speed 950~1900 RPM
●Reserved Bolted opening
Explosion-Proof Motor
●Fully closed motor box
●Avoid infiltration of solvent
●EX DlBT4 standard
●UL Or ATEX for option
Process Visualization
●0150X15mm Thick large diametertempered high borosilicate glassexplosion-proof Process View Window
●Inlet and outlet pipeline with large diameter tempered quartz Flow Sight
PLc Intelligent Process Control
●Except for explosion-proof motor,all live control components are integrated
●Reliable safety
●Full explosion-proof control cabinet is for option.
| Model | CFE-600D | CFE-800D | CFE-1000D | CFE-1250D | |||||||||||||||||||||||
| Rotation Drum Diameter(mm") | 600mm/24" | 800mm/31" | 1000mm/39" | 1250mm/49” | |||||||||||||||||||||||
| Rotation Drum Height(mm) | 350mm | 400mm | 420mm | 500mm | |||||||||||||||||||||||
| Rotation Drum Volume(L/Gal) | 45L/11.89Gal | 90L/23.78Gal | 140L/36.98Gal | 320L/84.54Gal | |||||||||||||||||||||||
| Soaking Vessel Volume(L/Gal) | 60U/15.85Gal | 140L/36.98Gal | 220L/58.12Gal | 440U116.24Gal | |||||||||||||||||||||||
| Biomass per Batch(Kg/Lbs.) | 50Kg/110Lbs. | 120Kg/265Lbs. | 200Kg/441Lbs. | 300Kg/661Lbs. | |||||||||||||||||||||||
| Temperature(℃) | -80℃~RT | ||||||||||||||||||||||||||
| Max Speed(RPM) | 1600RPM | 1200/1500RPM | 1080/1200RPM | 1000RPM | |||||||||||||||||||||||
| Motor Power(KW) | 3KW | 5.5/7.5KW | 11KW | 18.5KW | |||||||||||||||||||||||
| Weight(Kg) | 1500Kg | 2300Kg | 3000Kg | 5300Kg | |||||||||||||||||||||||
| Centrifuge Dimension(cm) | 180*120*103cm | 200*140*109cm | 240*160*234cm | 290*190*151cm | |||||||||||||||||||||||
| Control Cabine Dimension (cm) | 58*43*128cm | ||||||||||||||||||||||||||
| Control | PLC Program Control,Honeywell Frequency Converter,Siemens Touch Screen | ||||||||||||||||||||||||||
| Certification | GMP Standard,EX DIIBT4,ULor ATEX Optional | ||||||||||||||||||||||||||
| Power Supply | 220V/60HZ,Single Phase or 440V/60HZ,3 Phase;or Customizable | ||||||||||||||||||||||||||
