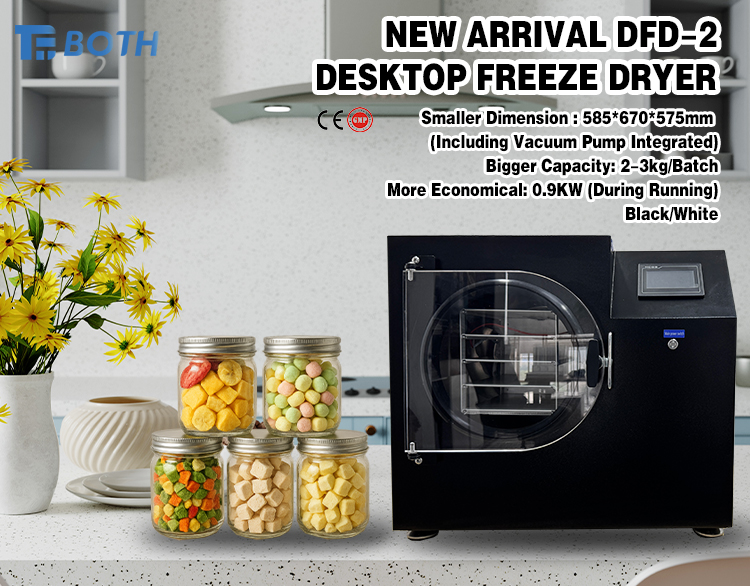

BOTH DFD-2 3Kg Small Desktop Lyophilizer Vacuum Automatic Food Freeze Machine Home Benchtop Freeze Dryer
①7'' true color industrial Touch Screen, easy to operate; Real-time display of each tray temperature, cold trap temperature and vacuum degree monitors the entire drying process.
② Materials in contact with the product meet Food Grade requirements.
③ The data is recorded automatically in the drying process,and can be exported through USB Interface.
④ The sealing door of the drying chamber is made of aviation grade acrylic material, thickness up to 30mm, with high strength and durability. High brightness, easy to observe during drying.
⑤ The cold trap is made of SUS304 Stainless Steel, with uniform ice capture and strong ability.
⑥ Silicon rubber sealing ring is able to used in Low & High Temperature（-60°C～+200°C）condition, and with long term sealing perfermance.
⑦German famous brand SECOP Compressor and Brazilian famous brands EMBRACO Compressor, stable refrigeration,longer service life

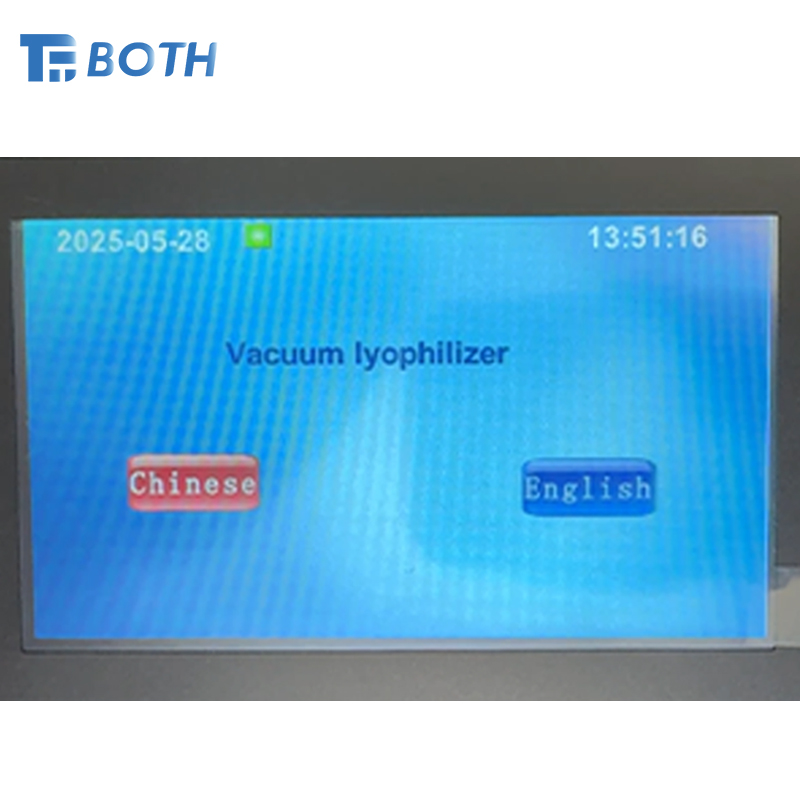

Lcd Touch Screen
Multiple functions and easy to operation.

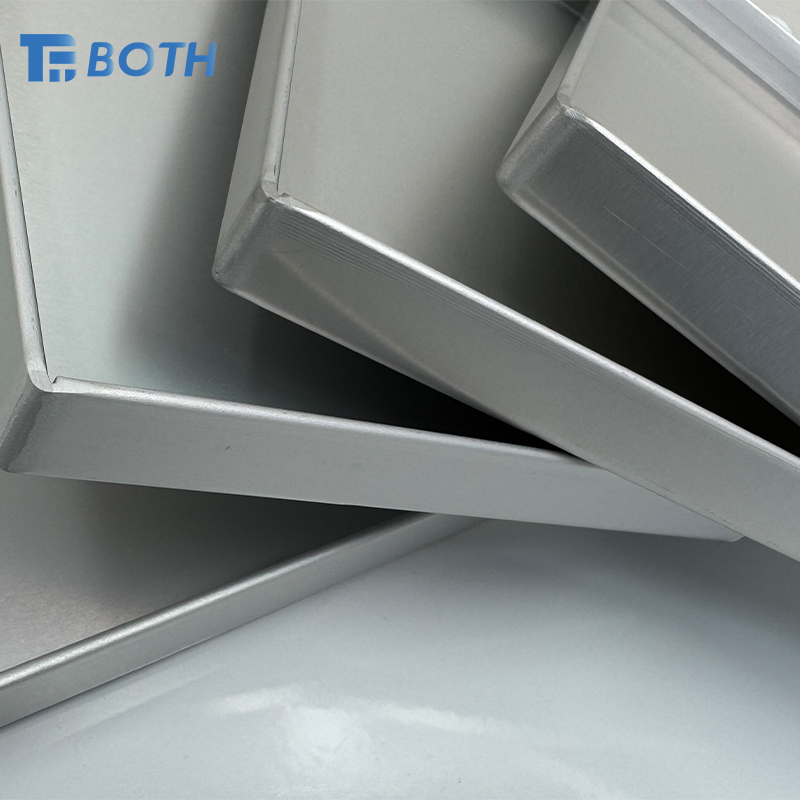

Aluminum Alloy Tray
Rounded Edges for Safety, Prevent-ing Hand Injuries

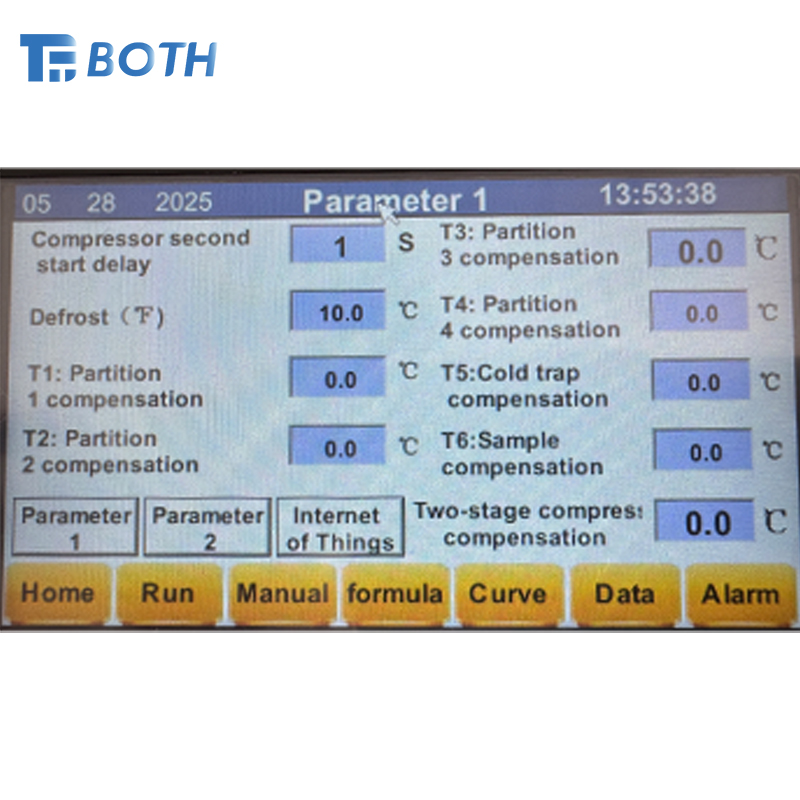

Auto Defrosting
Fast defrosting function,more effcient.

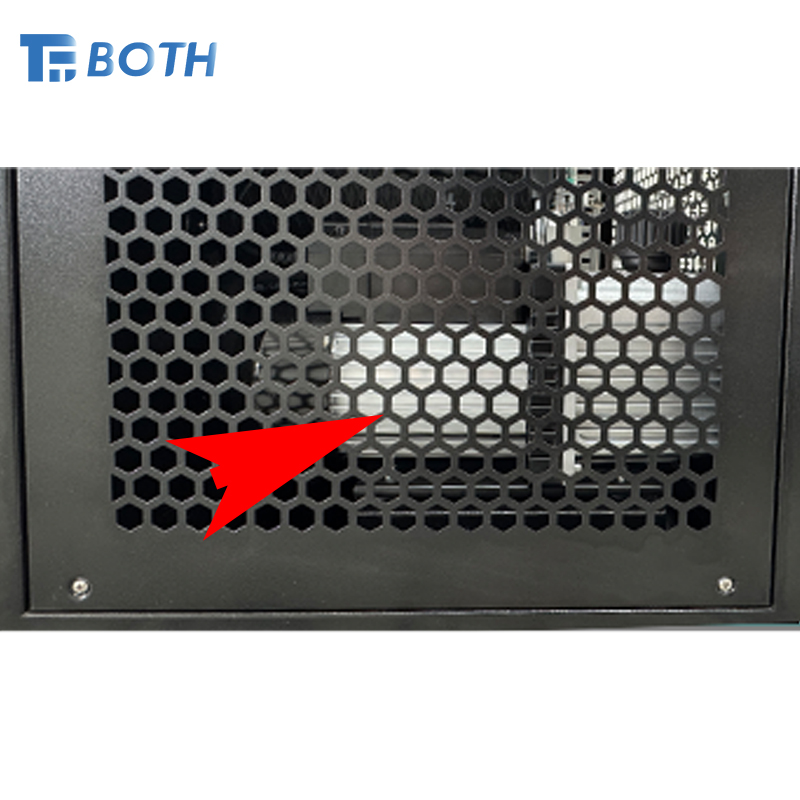

Built-in VacuumPump Design
Saves Space and Eliminates the Need for Additional Connections

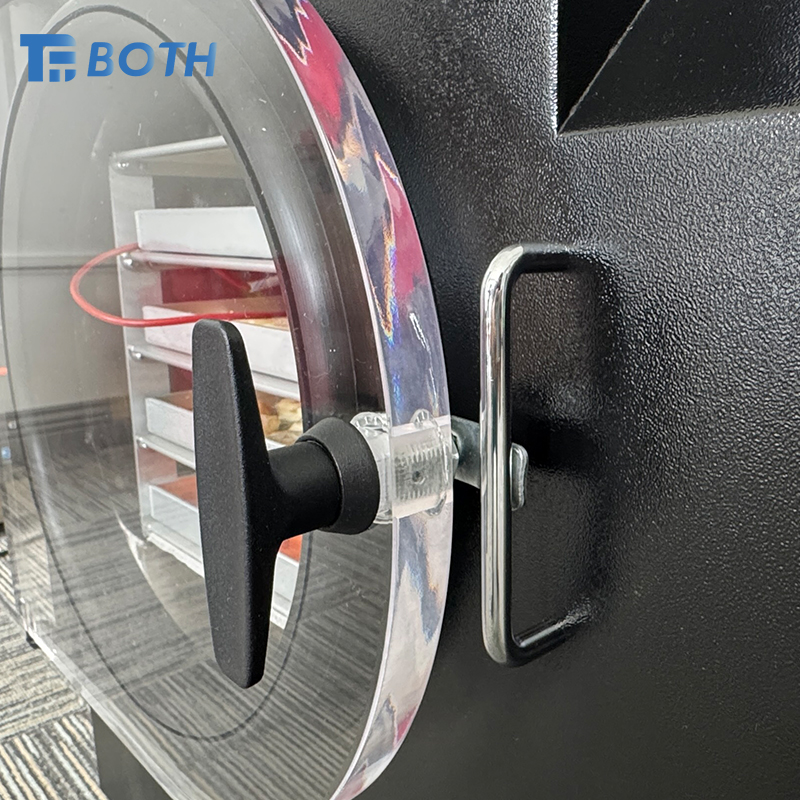

Glass Door Appearance UpgradeThickened see-through door for stronger sealing
see-through door for stronger sealing
| Model | DFD-2 |
| Freeze-dried Area(M2) | 0.2M2 |
| Handling Capacity(Kg/Batch) | 2~3Kg/Batch |
| Cold Trap Temperature(℃) | ＜-55℃（No-load） |
| Maximum Ice Capacity/Water Catch(Kg) | 2-3kg/24H |
| Layer Spacing(mm) | 42mm |
| Tray Size(mm) | 265mmx155mm 4Pcs |
| Ultimate Vacuum（Pa） | <=2Pa |
| Pumping Speed(L/S) | 2L/S |
| Noise(dB) | <60dB |
| Power(W) | 1000W |
| Power Supply | 220V/50HZ or Custom |
| Weight(Kg) | 66Kg |
| Dimension(mm) | 585x670x575mm |
